Scene3D Designer

Visual 3D designer on route #/scene3d_designer. It lets you compose a

three-dimensional scene (three.js), bind its objects to the app's scaffolded

routes and publish it read-only through the Scene3D Viewer (#/scene3d_viewer/:scene_key).

Scope

• Authoring of 3D scenes with primitives, imported assets and data-driven components.
• PBR materials, custom shaders, lights, shadows and — optionally — path tracing.
• Selectable renderer: WebGL (default) or WebGPU (opt-in), with automatic fallback.
• Binding of each object to a WUIC route (with an optional record) to drive visual

properties from data and open the route's CRUD with a double click.

• Scene persistence on _wuic_scene3d (scene_json) and read-only runtime

reopening in the viewer.

Palette

"Objects" panel (left): drag/click an entry to add the object to the center of

the scene. Each object is a THREE.Object3D with serializable geometry and

material. Viewport helpers (grid, gizmo, lights) are marked

userData.wuicTransient and are never persisted.

• Primitives: cube, sphere, plane, cylinder, cone, torus.
• Group: container to group and transform multiple objects together.
• Lights: ambient, directional, point, spot.
• Camera: an authorable point of view, used by the viewer and the preview.
• 3D Text: extruded text.
• Mesh Repeater: grid/ring/carousel of instances generated from data (DATAREPEATER 3D).
• Import asset: external model (glTF/GLB, OBJ, FBX, STL, DAE).

The palette is metadata-extensible: custom types defined in the

scene3d_object_type route appear automatically alongside the built-in types.

Import asset

Beyond the palette primitives, the designer imports external models through

three.js asset loaders. Supported formats:

• glTF / GLB (.gltf, .glb) — recommended transport format (PBR, animations).
• OBJ (.obj) — geometry + optional materials (.mtl).
• FBX (.fbx) — meshes, hierarchies and animations.
• STL (.stl) — solid mesh (typical CAD / 3D printing).
• DAE / COLLADA (.dae) — scenes with hierarchy and materials.

The imported asset is embedded in the scene's content group and serialized with

the rest of the payload, so the scene stays self-contained in the viewer.

Property panel

"Properties" panel (right), active on the selected object:

• Name, Position (x/y/z), Rotation (degrees), Scale, Color.
• Material (PBR): metalness, roughness, emissive, opacity, wireframe, flat

shading, faces (front/back/double). For the physical material also

transmission, IOR, thickness and volumetric absorption (colored glass).

• Gizmo: on selection the object shows both the translation handles

(arrows) and the rotation handles (rings). Shortcuts: g = move, r = rotate,

s = scale.

Shader effects

Each mesh can receive a shader effect in addition to the standard material:

• JSON effect (with schema): a small JSON describes the effect (base uv/tint/normal,

pulse, light, displacement, opacity) and is compiled for the active renderer —

GLSL on WebGL, node-material on WebGPU. It is edited with a JSON editor featuring

autocompletion and validation, with an alternate "structured" view.

• Custom GLSL shader: hand-written vertex/fragment shaders (animated uTime

uniform). Available only with the WebGL renderer.

WebGL / WebGPU renderer

• WebGL (default): classic three.js rendering, maximum compatibility.
• WebGPU (opt-in from the toolbar): node-materials renderer, active if the

browser supports it; otherwise it automatically stays on WebGL. The chosen

mode is saved with the scene and restored on opening.

• Some features remain WebGL-only and are flagged when the WebGPU renderer is

active: custom GLSL shaders (replaced by a fallback material and restored when

going back to WebGL) and path tracing.

• Designer and viewer are loaded lazy (import(...)): three.js stays

code-split and does not enter the initial bundle nor the library barrel.

Lighting

• Scene lights: directional, point, spot and ambient, with soft shadows.
• Light bake (per-vertex): bakes static lighting into vertex colors and

switches to an unlit material — "fixed" light independent of runtime lights.

With the WebGPU renderer the bake runs on a compute shader (shadows included),

much faster on dense scenes.

• Path tracing (WebGL renderer): progressive photorealistic preview mode with

global illumination, soft shadows and colored shadows through transmission

materials.

Animations and physics

• Animations / timeline: clips from imported assets (glTF/GLB) have a

transport (play/pause/stop/scrubber) in the designer and autoplay in the viewer.

• Physics (optional): per-object authoring (static/dynamic/kinematic,

collision shape, mass, friction, restitution) with Play/Stop simulation in the

designer and optional autoplay in the viewer.

Camera and preview

• Authored camera: positioned like any object; the viewer can open from its

point of view (#/scene3d_viewer/:scene_key/:camera_id).

• Camera preview: real-time popup with the selected camera's view, useful for

framing before publishing.

Route binding + click → CRUD

"Route binding" section of the property panel:

• Route: the WUIC metadata route the object is bound to (e.g. prodotti).
• Record ID (optional): binding to a specific record; empty = route binding.
• Field map: associates visual properties (label, color, visibility) with the

route's columns, so the viewer applies real data to the objects.

• Double click on a bound object in the viewer opens the route's CRUD

(edit/detail parametric-dialog of the linked record).

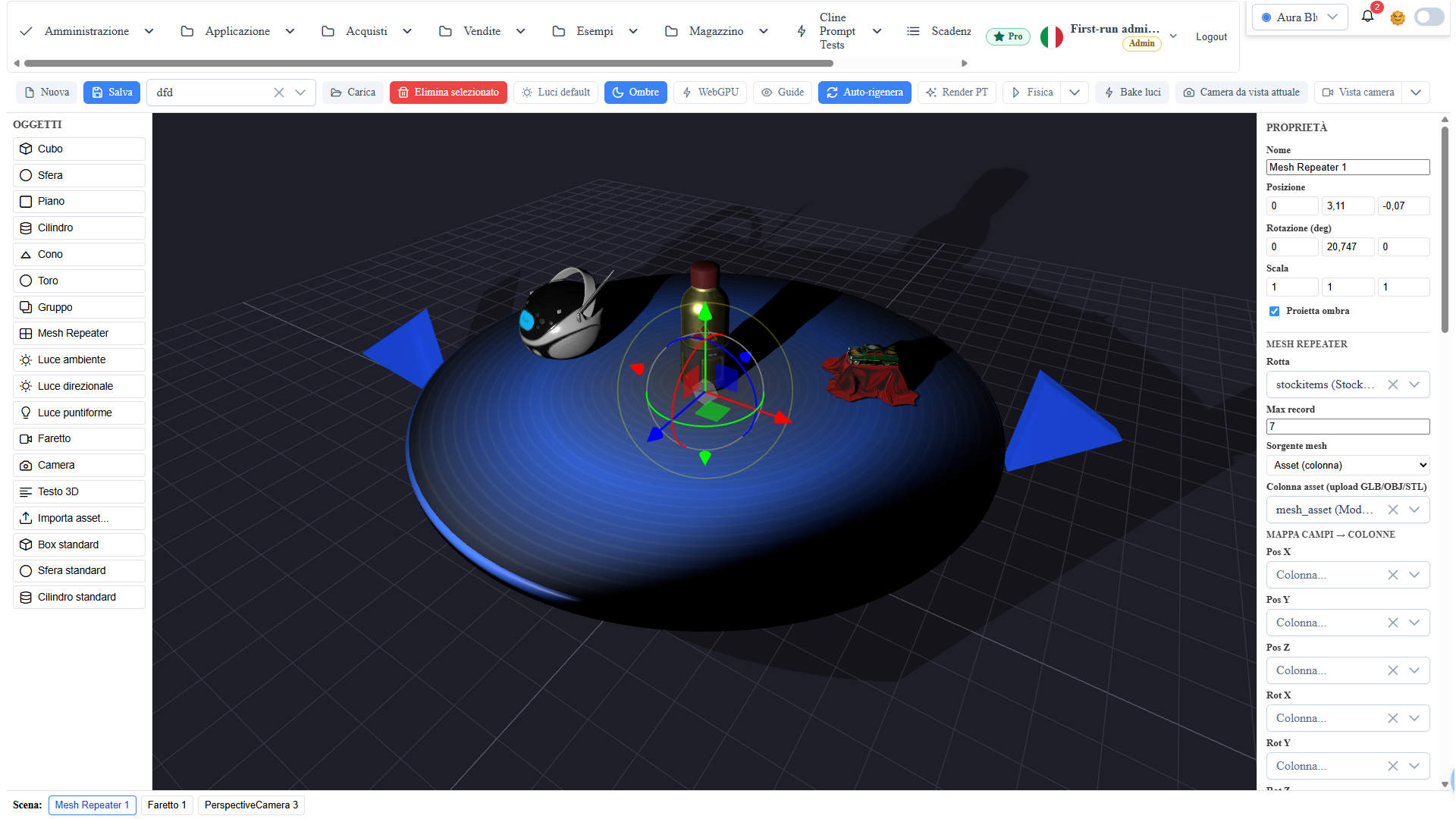

Mesh Repeater

The Mesh Repeater (DATAREPEATER 3D) is a palette object that, instead of

representing a single mesh, generates N instances from a route's data: one

mesh per record, arranged according to a layout archetype (carousel on a disc

with navigation arrows, grid, ring). It is the 3D equivalent of a

list-grid: the instances are rebuilt from data and are not serialized in the

scene JSON — the viewer regenerates them on load. The repeater moves/rotates like

a group with the gizmos; the Regenerate button (or the Auto-regenerate

toggle) re-runs the fetch and rebuilds the meshes.

Data source and mapping

• Route + Max records: the WUIC route that feeds the repeater and how many

records to load (first page).

• Mesh source: how each instance's mesh is obtained —

- Fixed: the same primitive/asset for all records;

- Column: the primitive type is decided by a column;

- Asset (column): real model per record, loaded from an upload column

that contains a GLB/OBJ/STL file (product-like meshes instead of generic boxes).

• Field map → columns: per-instance binding of position (Pos X/Y/Z),

rotation (Rot X/Y/Z), scale, label and color to the route's columns.

Layout and transforms

• Archetype: carousel (disc with forward/back arrows), grid, ring. The

carousel exposes disc radius, disc color and arrow size.

• Scale: automatic normalization (each asset brought to unit size) plus a

layout scale applied by the archetype — so models of very different sizes come

out uniform.

• Vertical offset (meshYOffset) and X/Y/Z rotation (meshRotX/Y/Z) to

fine-tune pose and height relative to the disc; meshes are anchored at the base

so they don't intersect the carousel's surface.

• Auto-regenerate: toolbar toggle that regenerates automatically (with debounce)

on every property change, without pressing Regenerate.

Interactions (JS callbacks)

Collapsible section at the bottom of the repeater panel: for the click,

double-click and right-click events on an instance you write a JS callback

(Monaco editor). It applies both in the designer and in the viewer. The

context exposes:

• record — the record of the hit instance (raycast), with its fields already unwrapped;
• mesh — the clicked Object3D; plus event, scene, camera, THREE;

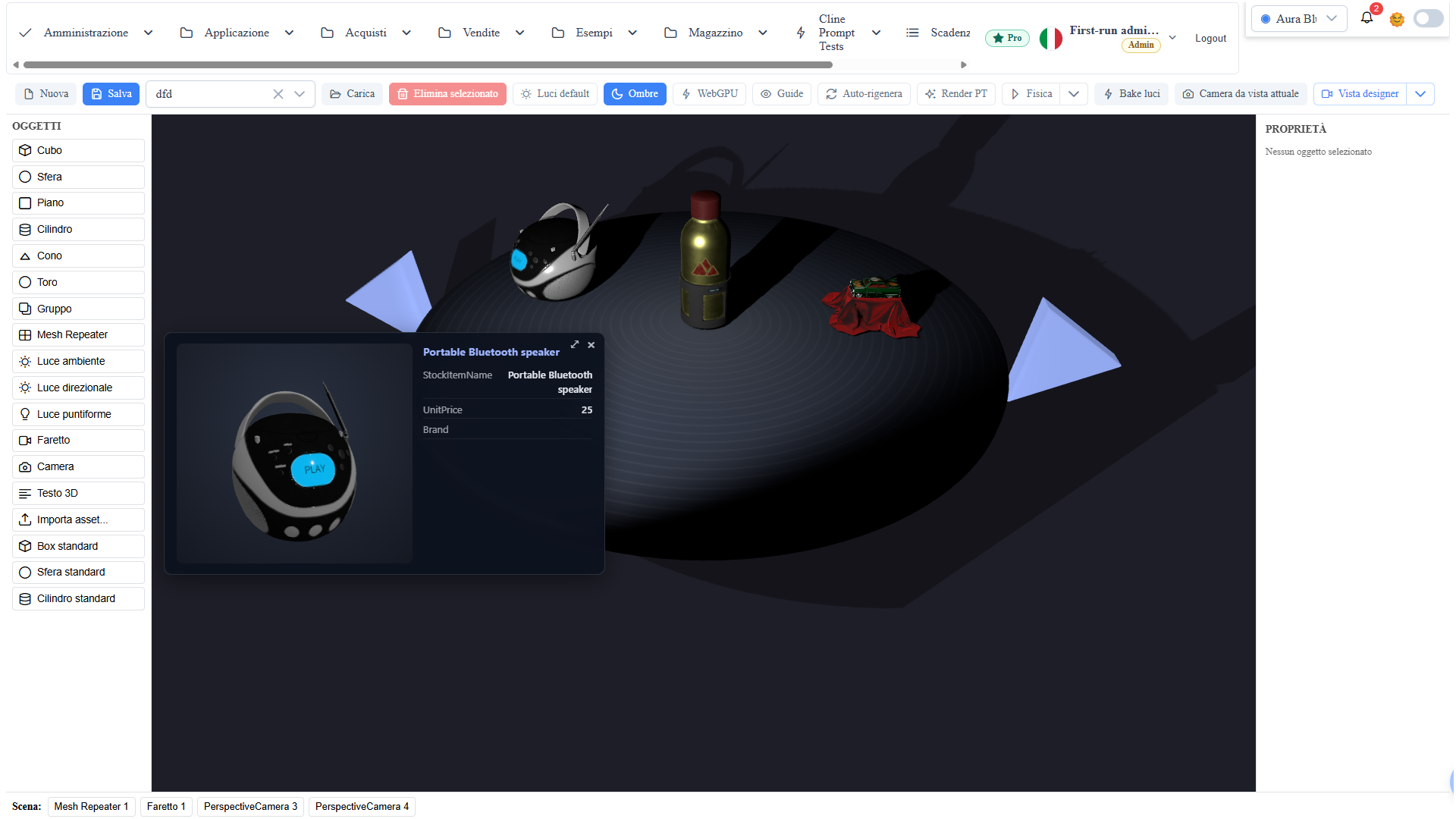

• wuic.showItemPopup(opts) — helper for a "fields + mesh preview" popup;

wuic.closePopup() to close it.

showItemPopup accepts: mode (1 HTML overlay with a live 3D preview / 2

3D panel in the scene, billboard toward the camera), fields (columns to show),

title, width/height dimensions (px or %), panelBg, swap (flips the

mesh/fields sides), maximizable, verticalPosition/horizontalPosition and

autorotateMesh (false = you rotate the model with the mouse). In the overlay

preview the wheel zooms.

Automatic previews

On save, the designer captures the already-rendered GPU canvas and generates a

preview of the scene (asynchronously, without slowing down the save). The preview

appears in the "Load scene" list next to the name, so scenes are recognizable at

a glance. No configuration or external process is required.

Permissions

• The designer/viewer routes require the scene3d-designer feature

(requireFeature on the route guard): without the feature enabled the route is

not reachable.

• The binding respects the target route's permissions: opening CRUD from the

viewer goes through the normal authorization check of the bound route.

• Persistence uses the MetaService.saveScene3d / getScene3ds /

loadScene3d methods (metadata DB, _wuic_scene3d table), subject to standard

authentication (k-user cookie).

Client/server integration

• Client:

- scene authoring, viewport interactions, gizmo, property panel and binding;

- THREE.Object3D.toJSON() serialization into { version:1, scene, bindings?, viewport?, physics? };

- preview capture from the canvas on save.

• Server:

- upsert/read of the scene on _wuic_scene3d.s3d_scene_json (schema

created/updated automatically on first use, cross-DBMS);

- data resolution of the bound routes on the viewer side.

Operational notes

• Save before navigating away: a canDeactivate guard warns when there are

unsaved changes.

• Keep object names stable for binding and debugging.
• Verify that the bound routes exist in the metadata before publishing the scene

in the viewer.

• WebGPU requires a recent browser with active support; failing that, the designer

stays on WebGL without any intervention.
