Widget Many To Many

Widget for many-to-many relationships based on column mc_ui_column_type = "multiple_check".

Screenshot Reference (User Manual)

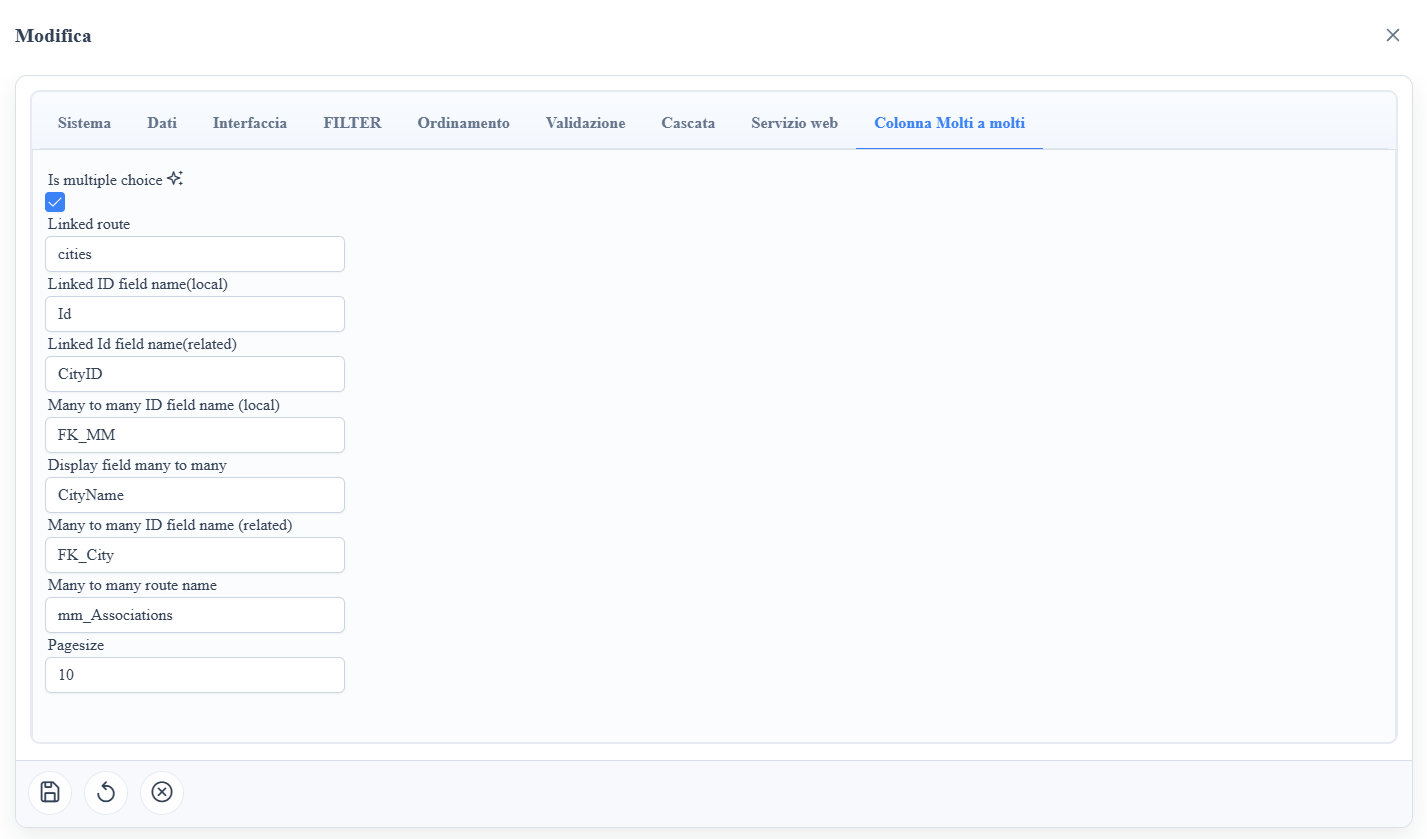

• manual__manytomany__01.png: many-to-many widget metadata configuration.

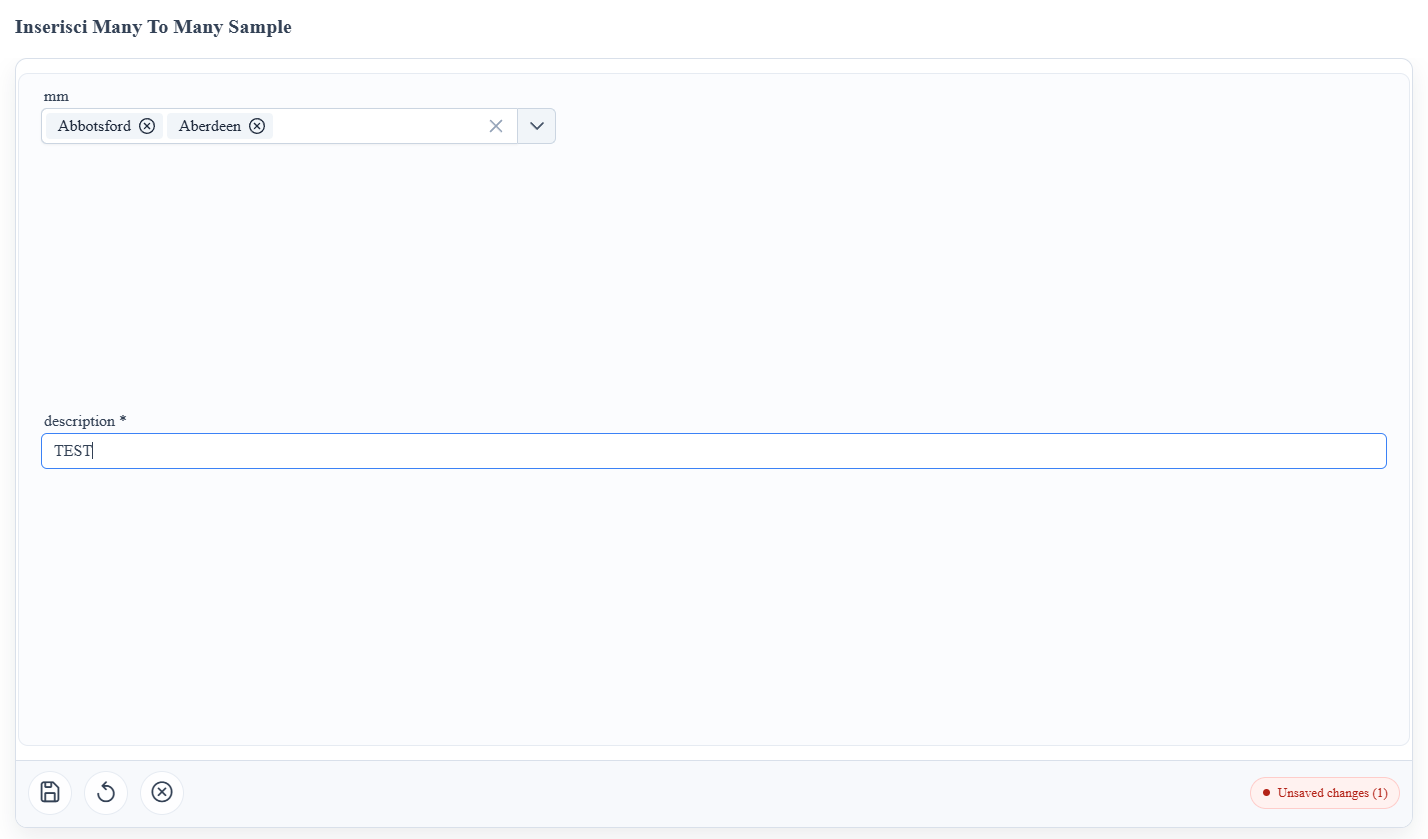

• manual__manytomany__02.png: runtime example of the many-to-many widget in grid/edit.

Main Column Metadata

• mc_ui_column_type: must be multiple_check.
• mc_ui_grid_is_multiple_check: enables multi-selection behavior in the lookup editor.
• mc_ui_grid_route: metadata route of the lookup table (related entity).
• mc_ui_grid_display_field: descriptive field shown in the selector and grid.
• mc_ui_grid_related_id_field: ID field of the related record.

Many-to-Many Specific Column Metadata

• mc_ui_grid_manytomany_route: metadata route of the many-to-many bridge table.
• mc_ui_grid_manytomany_local_id_field: FK field toward the local entity in the bridge table.
• mc_ui_grid_manytomany_related_id_field: FK field toward the related entity in the bridge table.
• mc_ui_grid_local_id_field: local table ID field used to bind the selection.

Runtime Behavior

• In edit/detail, the widget uses multiple selection with remote lookup.
• In list/grid, the value is rendered as a description list (join on mc_ui_grid_display_field).
• On save, the framework synchronizes the many-to-many relationship using local/related keys defined in the metadata.

Operational Notes

• Verify that mc_ui_grid_route and mc_ui_grid_manytomany_route are valid metadata routes.
• Verify consistency between *_local_id_field and *_related_id_field fields with the SQL schema of the bridge table.
