Application Menu

Application navigation menu management through metadata, with desktop/mobile support and hierarchical structure.

Screenshot Reference (User Manual)

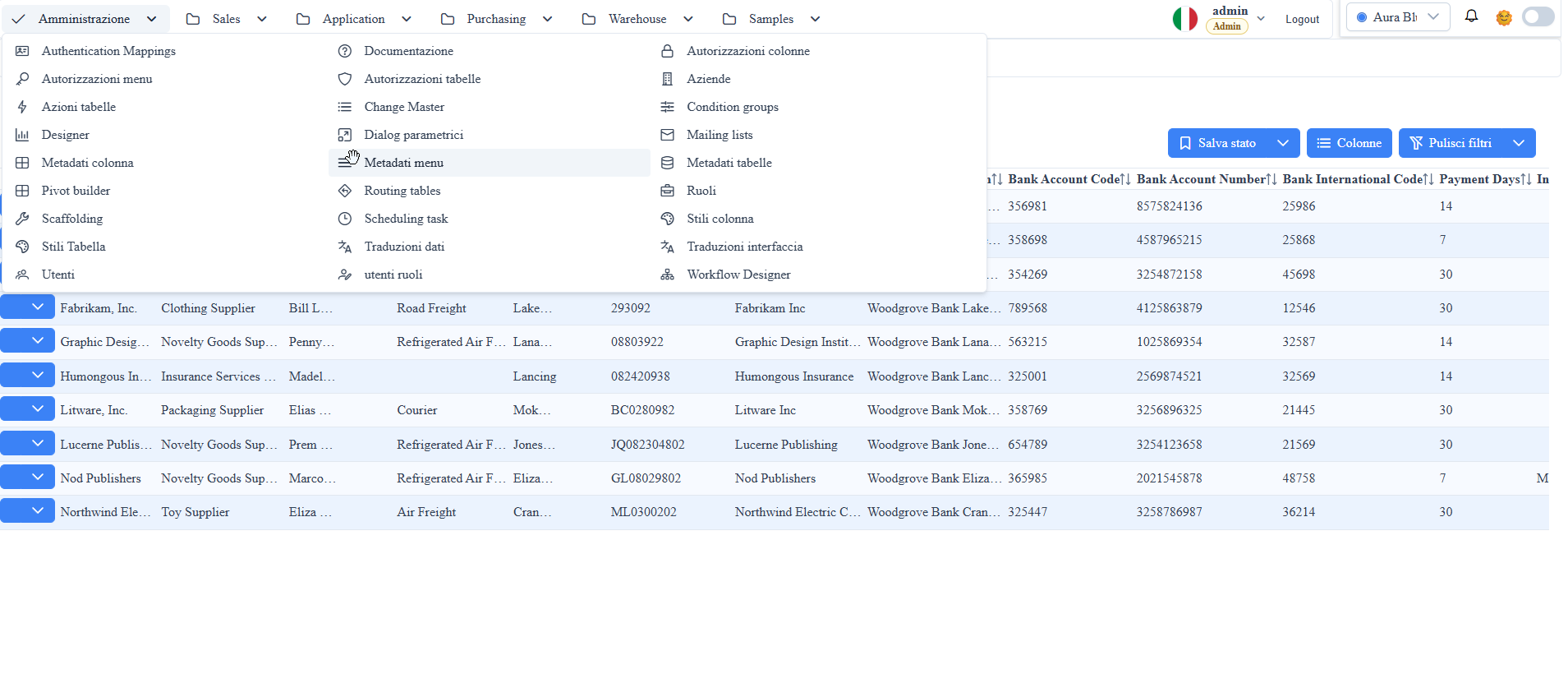

• manual__menu__01.png: administration menu (menu_amministrazione).

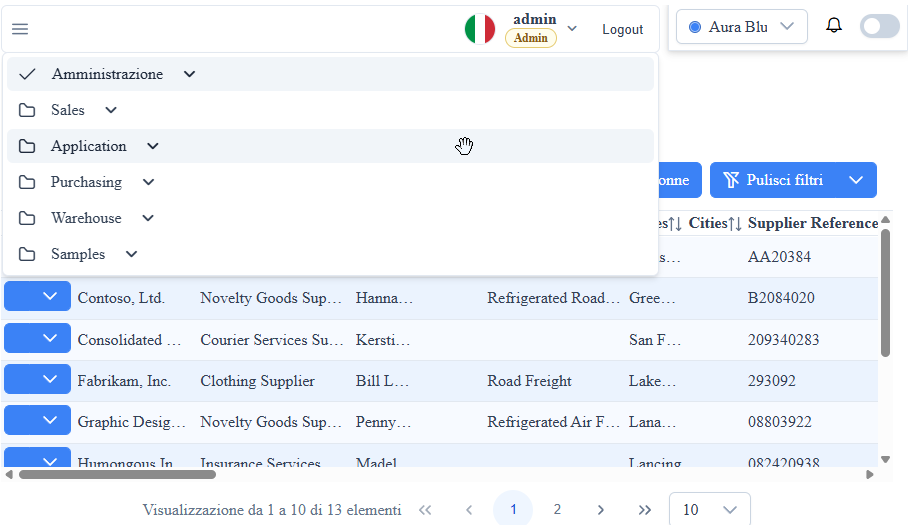

• manual__menu__03.png: menu rendering in mobile version.

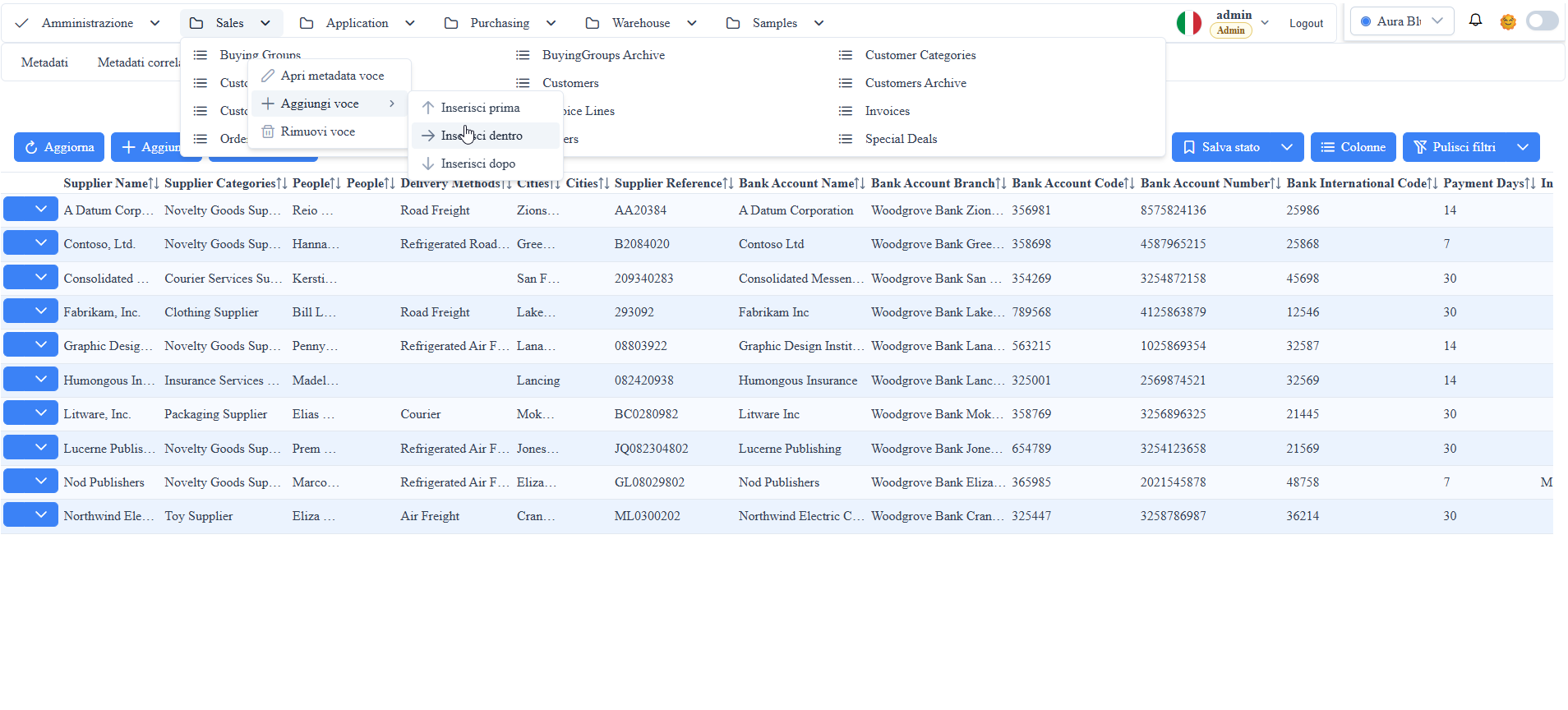

• manual__menu__02.png: application menu example with group expansion and items / editing.

Menu Metadata (_metadati__menu)

Description:

the menu metadata table defines hierarchy, ordering, labels, routes, and icons of navigation items.

• mm_id: unique menu item identifier.
• mm_parent_id: item parent (for multi-level tree).
• mm_ordine: display order among siblings.
• mm_display_string_menu: text displayed in UI.
• mm_uri_menu: route/URI associated with the item click.
• md_id: optional link to the metadata route (_metadati__tabelle).
• mm_icon: item icon (Prime/theme icon class).
• mm_props_bag: JSON extensions for custom behavior.

Result:

• same menu model for desktop and mobile shell;
• consistent navigation entirely governed by metadata;
• ability to extend behavior without changing core code.

Recommended Operational Rules

• Use mm_parent_id to group items in logical sections (e.g., Administration, Sales, Application).
• Keep mm_ordine progressive to avoid ordering gaps.
• Populate mm_uri_menu with valid routes (#/...) to avoid non-navigable items.
• Use mm_props_bag for specific UI options without frontend hardcoding.

Runtime Rendering

• The menu component reads the metadata and builds the navigation tree.
• On desktop, it uses a horizontal menu with dropdown.
• On mobile, it applies a compact/collapsible layout maintaining the same logical structure.

Menu Editing (Admin)

For admin users, the menu editing mode is available directly in the UI: through the context menu you can create/modify/delete items, while with drag & drop you can reorder the hierarchy (parent/sibling) updating the metadata structure in a guided manner.
